RoyaleGym¶

License Last commit

Make a Clash Royale bot. You write a reward function in Python, which says what your bot should want. The other four pieces already have a version that ships in the box: what your bot sees, what its moves mean, how a match starts, and when it ends. So does the battle.

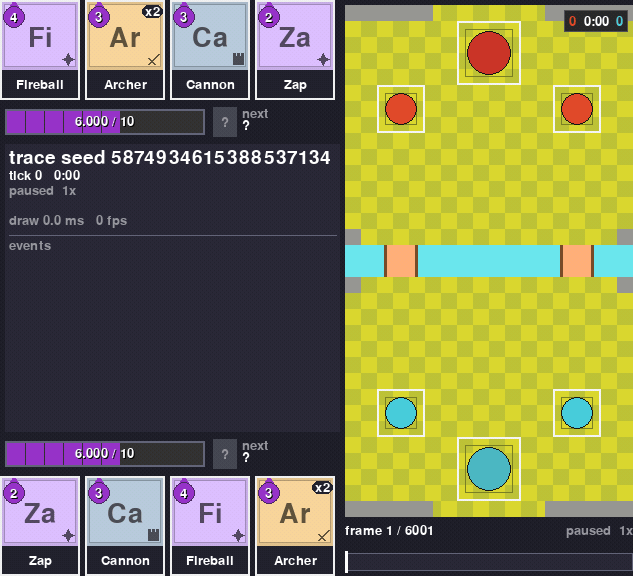

A whole battle between two players choosing at random among their legal moves, played back in RoyaleViser

You can replace any of those other pieces too. Each one is a small Python class.

The battle itself runs in RoyaleSim, a Rust engine. It moves the game forward in fixed 50 ms steps. Those steps are called ticks, and there are 20 of them per second of game time. Its rules are calibrated against recordings of real battles.

Three things worth knowing before you start:

Two random players finish a whole battle in well under a second.
Your bot is told exactly which moves are legal before it picks one. It never wastes a turn on a card it cannot afford or a tile it is not allowed to deploy on.

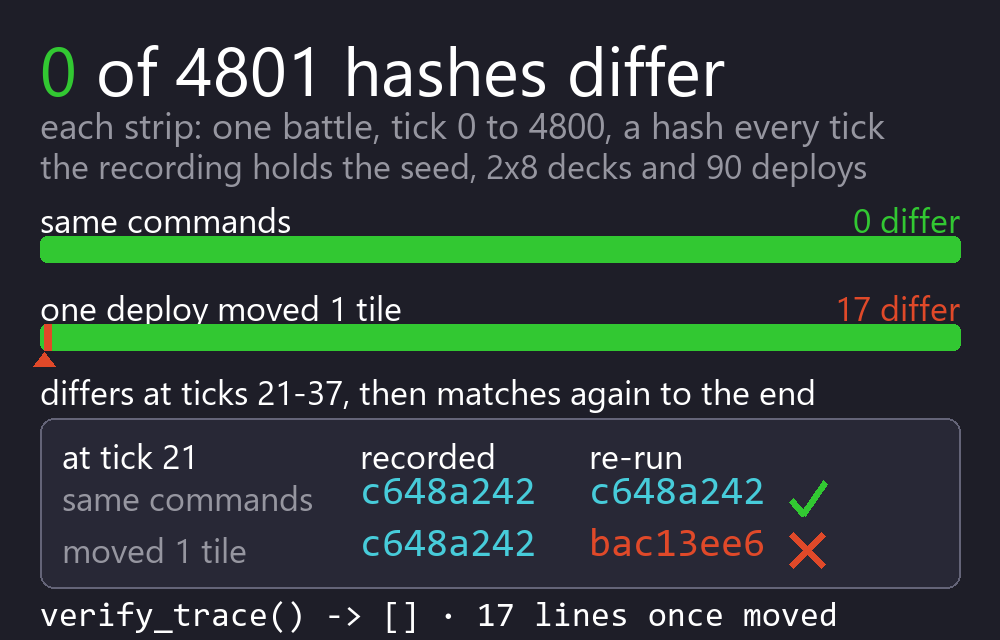

Any battle can be recorded and re-run later. The recording carries a hash of the board for every tick, and the re-run has to match all of them.

RoyaleGym speaks the two standard Python interfaces for this kind of thing, Gymnasium and PettingZoo, so the API is the one those libraries' examples use.

New here? The install steps are under Install.

What you get¶

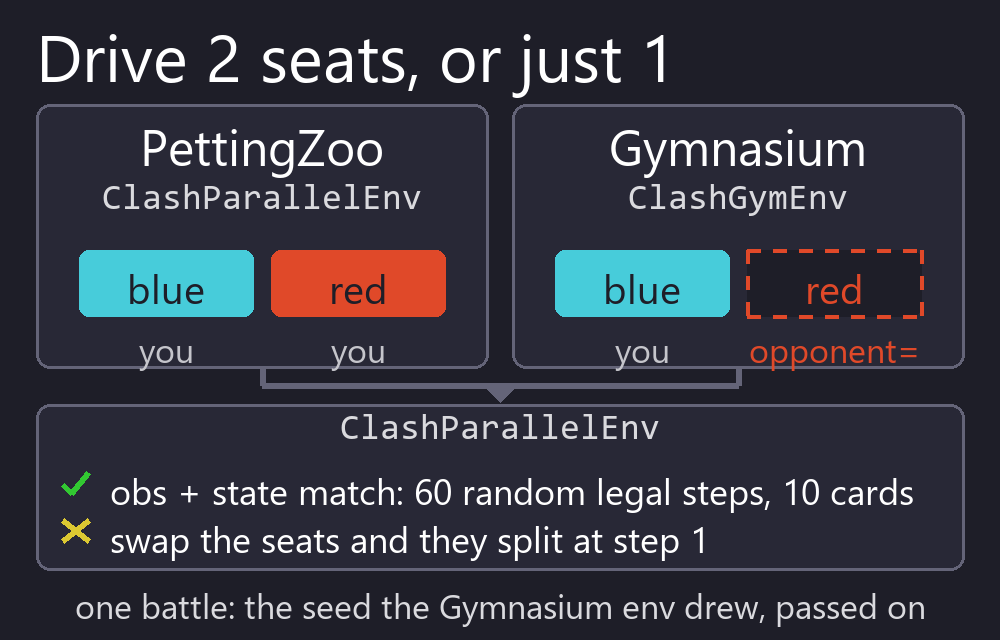

Two APIs, one battle _{PettingZoo when you want both players (the two seats) to be bots. Gymnasium when you want one seat, and the env plays the other.}	An exact list of legal moves _{Every observation says which of the 2305 card-and-tile moves are playable right now. In the Try-it battle below, 1640 of the 2305 are once play opens on step 9. Before that only waiting is legal, because a match refuses every deploy for its first 90 ticks.}	One bot plays itself _{N battles run as 2N player slots, so one bot learns from both sides of every match in a single batch.}

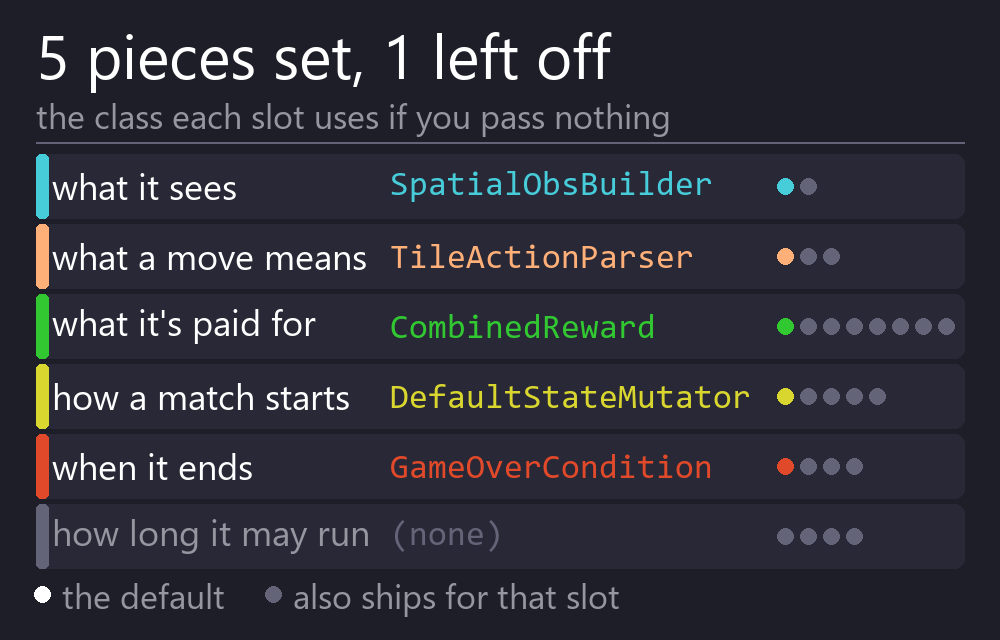

Five swappable pieces _{What the bot sees, what its moves mean, what it is rewarded for, how a match starts, and when it ends. Each is a small class with a default that ships.}	Start from any position _{A fresh battle, a damaged mid-game, a board you set up by hand, or an exact saved snapshot. Mix them by weight to build a curriculum.}	Record it, re-run it, prove it _{A recording holds the seed, the setup, the commands and a hash per tick. Re-run it on a fresh engine and every one of those hashes has to come back the same.}

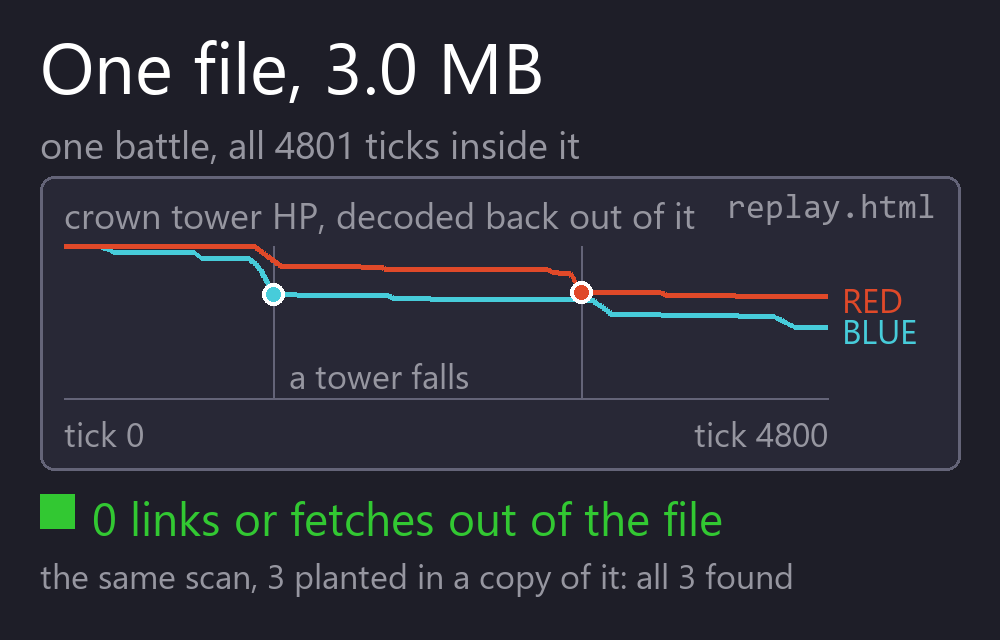

A replay page, no server _{A recording becomes one self-contained HTML file you double-click. Nothing to install and nothing to run.}	Watch it in the viewer _{RoyaleViser draws a recording in a window, or watches a running env live. This is a battle in its window.}	Hidden information, as in the game _{Your bot does not see the opponent's hand. Their elixir is counted from the plays you watched, the way a player counts it. You can turn either one on, which changes the observation's width, and `ClashParallelEnv.config()` records that you did.}

Try it¶

Nothing but royalegym and numpy; this is the complete program:

import numpy as np
from royalegym import (ClashParallelEnv, DefaultStateMutator, RandomLegalOpponent, RustEngine)

engine = RustEngine()
by_name = {c.name: c.card_id for c in engine.cards()}          # look cards up BY NAME
deck = [by_name[n] for n in ("Knight", "Archer", "Giant", "Minions",
                             "Fireball", "Cannon", "Zap", "Musketeer")]

env = ClashParallelEnv(engine=engine,                          # PettingZoo parallel API, both seats
                       state_mutator=DefaultStateMutator(decks=[deck, deck]))
obs, info = env.reset(seed=0)
rng, policy = np.random.default_rng(0), RandomLegalOpponent(noop_prob=0.7)

while env.agents:                                              # one whole battle
    actions = {a: policy.act(obs[a], obs[a]["action_mask"], rng) for a in env.agents}
    obs, reward, terminated, truncated, info = env.step(actions)

s = env.battle_state
print(f"winner {s.winner}  crowns {[p.crowns for p in s.players]}  tick {s.tick}")

winner 1  crowns [1, 2]  tick 6123

That is a whole match, re-run 2026-10-02 on engine build 6f18fbeda772dfad with the 15.535 card table, which the Install steps below put at cards.json. It was one crown each when the three minutes ran out: Red took Blue's left princess tower at tick 1800 and Blue took Red's left one at tick 3580. Nobody scored in overtime, so when it ended at tick 6000 the tiebreak decided it: play stopped, the board was cleared down to the crown towers, and from tick 6067 every tower lost the same health each tick. Blue's weakest tower had the least left, so it fell first, at tick 6123, and Red won 2-1.

Measured on the project's desktop, not on a clean runner, building the engine from RoyaleSim 9ee48a3. The compiled engine is engine_binary_sha256 db1b9c91f77ad735.

This result has moved seven times. The first six were each traced to one engine rule the same way: switch that one rule back, run this exact program, and get the previous result exactly.

On 2026-09-23 it went from winner 0 crowns [2, 1] tick 3600 to winner 0 crowns [1, 0] tick 3755, when a tower whose target dies started carrying its attack timing on to the next target instead of starting again (combat.RETARGET_PROGRESS).
On 2026-09-24 it moved to winner 1 crowns [0, 1] tick 3600, when attacking units started being pushed apart by their neighbours, as recordings of real matches show (movement.ATTACKING_UNIT_MOVEMENT).
Later on 2026-09-24 it moved to winner 0 crowns [1, 0] tick 3728, when a walking unit stopped turning aside for a unit next to it that is still deploying and faces the same way, again as recordings of real matches show (movement.DEPLOYING_HEADING).
On 2026-09-27 it moved to winner 0 crowns [1, 1] tick 6000, when a troop tapped on its own crown tower started being moved off it and the king's no-deploy block started opening on its far edges, both as measured on the client (placement.TROOP_TOWER_TAPS). With that rule switched back, that build printed winner 0 crowns [1, 0] tick 3728 exactly.
Later on 2026-09-27 it moved to winner 1 crowns [0, 1] tick 3600, when a unit that has just killed its target stopped carrying its swing over to a new target out of its reach, as measured on the client (combat.CORPSE_SWITCH_REACH). With that rule switched back, that build printed winner 0 crowns [1, 1] tick 6000 exactly; switching back any one of the other nine rules that changed with it did not.
On 2026-09-28 it moved to winner 1 crowns [1, 1] tick 6000, when a troop tapped on one of its own buildings started being moved off it as off a crown tower, as measured on the client (placement.TROOP_BUILDING_TAPS). With that rule switched back, this build prints winner 1 crowns [0, 1] tick 3600 exactly; switching back any one of the other four placement rules that changed with it does not.
On 2026-10-02 it moved to the result above, when a level overtime stopped ending in a tiebreak at tick 6000 and started ending as on the client: play stops, the board clears down to the crown towers, and the towers drain until one falls (match.OVERTIME_TIEBREAK, RoyaleSim 0.1.4). Up to tick 6000 the battle is the same, with the same two towers falling at ticks 1800 and 3580, and so is the winner: the drain takes the weakest tower first, the one the old tiebreak judged.

The RoyaleSim commit is written here because the digest cannot supply it. build_digest hashes the calibration values and the arena compiled into the extension; it has no access to the Rust at all, so two engines with different code and identical calibration share one. That cuts both ways: a future engine could change behaviour, keep this digest, and be compared against this battle as though nothing had moved. The commit beside it is what closes that gap, and engine_binary_sha256 is the stamp that identifies the compiled artefact if you need to tell two builds apart directly.

Two stamps, because two things move this output independently. The build is one, as above. The card table is the other, and it is not a smaller effect: at an earlier build, d6715210f21ca0c3, this program chose a different winner on the 2018 table than on the 15.535 one. So if your result differs, the digest and the vintage together tell you which of the two moved, rather than leaving you to suspect your install. RustEngine().config() returns yours as a dict; print it to read build_digest and cards_vintage. A different digest with the same printed line is fine.

Both players are picking at random from the legal moves, and each of them still took a tower. That is the bar your bot starts from.

These eight cards are here so the battle comes out the same on your machine as it did on ours. They are an example, not a recommendation. All eight are from the 18 whose behaviour is checked against recordings, which cards.json lists under thin_slice, so the example leans on the best-measured part of the engine. Any eight will do. Leave the deck out and each team is dealt a random eight, which is the default.

One env step is half a second of game time, which is 10 ticks. The battle ended at tick 6123, five minutes and six seconds in, so each player made 613 decisions. The whole battle takes under a second of real time, and how far under depends entirely on what else your machine is doing: four runs on 2026-09-22, on a laptop with 8 GB of memory and several other jobs going, gave 0.57 to 0.74 s. Treat any timing on this page the same way.

Both players here just pick at random from the moves that are legal. That is already a working opponent, so you have something to train against from the first minute.

Name the deck, and name it card by card. A card id is only a position in the catalogue, and positions move between card tables, so the same number is not the same card on every machine. If you leave the deck out, each side is dealt eight random cards from whatever catalogue your machine built, and the same seed then gives you a different battle from the one above. Look cards up by name and your battle matches this one.

There are seven numbered programs in examples/, in the order they are worth reading: this battle, one seat with the env playing the other, batched self-play, writing your own reward, recording and proving a replay, resuming a run where it stopped, and comparing two bots. An eighth, measure_building_relocation.py, is a measurement rather than a lesson: it counts how often a building does not land on the tile that was tapped. The test suite runs all eight and checks each one printed the thing it exists to show.

If you would rather start from Gymnasium's single-agent API, that is one line, and the id says which engine you are getting:

import gymnasium as gym
import royalegym                                   # registers the ids

env = gym.make("royalegym/ClashRoyaleRust-v0")     # the real engine, one seat
env = gym.make("royalegym/ClashRoyaleMock-v0")     # the reference implementation

royalegym/ClashRoyale-v0 also exists and takes whatever engine= you pass it. Leave that out and you get the reference implementation with a warning saying so, because a default that silently decides which engine your results came from is worse than no default. The reference implementation is a readable Python engine, not the game: different card table, spells that resolve on the spot instead of travelling, no stuns and no knockback. It is the right thing to learn the API on and the wrong thing to believe a trained bot against.

Install¶

You need this repo and RoyaleSim.

Before you start you need three things, and the build fails late and unhelpfully without the third: Python 3.12 or newer, git, and a Rust toolchain from rustup.rs. On Windows, rustup will offer to install the Microsoft C++ build tools; say yes, because the engine cannot link without them. The Rust build folder was 100 MB after the build, and about 760 MB after also running the Rust tests and clippy (4-CPU Linux, 2026-09-27).

The commands below are for Windows, one per line. Paste them one at a time rather than as a block: Windows PowerShell cannot chain commands with &&, and a pasted comment is not a comment in cmd. On macOS and Linux the interpreter is .venv/bin/python, paths take forward slashes, cp replaces Copy-Item, and export X=Y goes where Windows sets a variable. The install page has those commands in full.

mkdir Royale
cd Royale
git clone https://github.com/RoyaleGym/RoyaleSim.git
git clone https://github.com/RoyaleGym/RoyaleGym.git
git clone https://github.com/RoyaleGym/RoyaleViser.git
git clone https://github.com/RoyaleGym/RoyaleLearn.git
py -3.12 -m venv .venv
.venv\Scripts\python --version
.venv\Scripts\python -m pip install maturin pytest hypothesis ruff numpy msgspec

The venv must be Python 3.12 or newer, so the --version line has to print 3.12 or newer before you build. On macOS and Linux, create it with python3.12 -m venv .venv and check it with .venv/bin/python --version. An older Python compiles the engine for several minutes and is only refused at the install step. If python --version already prints 3.12 or newer, python -m venv .venv works too.

Optional: RoyaleImitate adds imitation learning to RoyaleLearn. Its README has its own two install lines.

Now generate the card and arena data the engine reads. A clone carries only cards-15.535.json in RoyaleSim/data/derived/; these lines generate the rest, and the engine cannot start without them:

cd RoyaleSim
..\.venv\Scripts\python tools\extract_arena.py
..\.venv\Scripts\python tools\extract_cards.py --vintage 2018
Copy-Item data\derived\cards-15.535.json data\derived\cards.json
..\.venv\Scripts\python tools\extract_globals.py

Then build the engine, from that same folder. From a fresh clone it took 163 seconds and about 1 GB of memory on a 4-CPU Linux machine on 2026-09-27. It can go quiet for a minute or more on the engine itself; let it finish:

..\.venv\Scripts\maturin develop --release
cd ..

Then install the Python packages:

.venv\Scripts\python -m pip install -e RoyaleGym
.venv\Scripts\python -m pip install -e RoyaleViser
.venv\Scripts\python -m pip install -e RoyaleLearn

Only if you want to train, and it is a multi-GB download. No NVIDIA GPU? Install CPU torch first. On a 4-CPU Linux machine with no GPU, on 2026-09-27, the default torch download pulled about 5 GB of CUDA wheels:

.venv\Scripts\python -m pip install torch --index-url https://download.pytorch.org/whl/cpu

Then the training extra:

.venv\Scripts\python -m pip install -e "RoyaleLearn[torch]"

On macOS and Linux both lines start .venv/bin/python instead.

You can stop after the pip install -e RoyaleGym line. RoyaleViser is optional. It is the viewer. Four tests in this repo's suite need it, and they skip without it; pytest reports them as two skips, because three of them share one file. RoyaleLearn is the trainer. Nothing here needs it except the documentation site build (see Read next, below).

Two card tables get written and only one of them is the one the engine loads. cards-15.535.json is committed to RoyaleSim, so the copy line puts the current game's table at cards.json, which is what the engine reads. That is the table this README's numbers are measured on and the one you want.

extract_cards.py --vintage 2018 builds the older table beside it, under its own name. Keep the --vintage 2018 flag on that line: without it the extractor asks for card data that is not shipped with the repo. The 2018 table is not left over - it is what the cross-engine comparisons use, and that is the next paragraph.

On macOS or Linux the copy line is cp data/derived/cards-15.535.json data/derived/cards.json.

Six tests that compare the two engines skip on this install, and that is correct. MockEngine reads RoyaleSim's raw 2018 CSVs while the compiled engine reads cards.json; with different vintages those tests would be measuring the card data rather than the engines, so they decline and say so. The comparison still happens: RoyaleSim's cross-repo job runs exactly those files with the 2018 table written to cards.json, so both halves are on one vintage. One table for running the simulator, another for the one check that puts two engines side by side.

The order of the data step and the build step matters. The build copies the arena and the calibration constants into the engine, so the data has to exist first. The card table works differently. Every time you create an engine, it reads data/derived/cards.json from the RoyaleSim folder it was built in. Re-running extract_cards.py in that folder changes the cards with no rebuild. Pointing ROYALESIM_DATA_DIR at other data does not change which card table the engine reads. So extract first, build second, and build in the checkout whose data you want.

One hazard if you keep more than one checkout. maturin develop installs the engine into the venv it is run from. Building from a second checkout that shares that venv swaps the engine out from under the first one. For a second checkout, build a wheel with maturin build --release and install it into a throwaway venv instead.

If the Rust engine will not build on your machine, you can still start. royalegym imports without it. RustEngine() then raises an ImportError that names the build command, and MockEngine, a plain Python stand-in, runs the whole API in the meantime.

RustEngine() also refuses to start if the calibration or arena file on disk differs from the copy built into the engine. Rebuild after you change either one.

The repos¶

How the Royale repos depend on each other: RoyaleLearn trains on RoyaleGym, which steps RoyaleSim; RoyaleViser draws traces and streams; RoyaleLive's recordings calibrate RoyaleSim

You only need this repo and RoyaleSim to train a bot. The others are there when you want them: a trainer and an add-on for it, a viewer, and the recordings the engine is calibrated against. RoyaleGym is the front door, and the project is named after it.

Repo	What it is	To this repo
RoyaleSim	the battle engine. Integer-only Rust. The same seed always gives the same battle. Its movement rules are measured against recordings of real battles	the engine `RustEngine` drives, and where the arena and card data comes from
RoyaleGym (this repo)	the environment API: what the bot sees, what its moves mean, what it is rewarded for. Gymnasium, PettingZoo and self-play envs	package `royalegym`, which puts the five pieces together into the envs
RoyaleLearn	the training harness: self-play rollouts, PPO, a ladder of frozen opponents, checkpoints	it runs on these envs. No bot has come out of it yet, and every run before the evening of 2026-09-22 trained on a mis-aligned reward. A fix landed that day and nothing has been published from a run on it

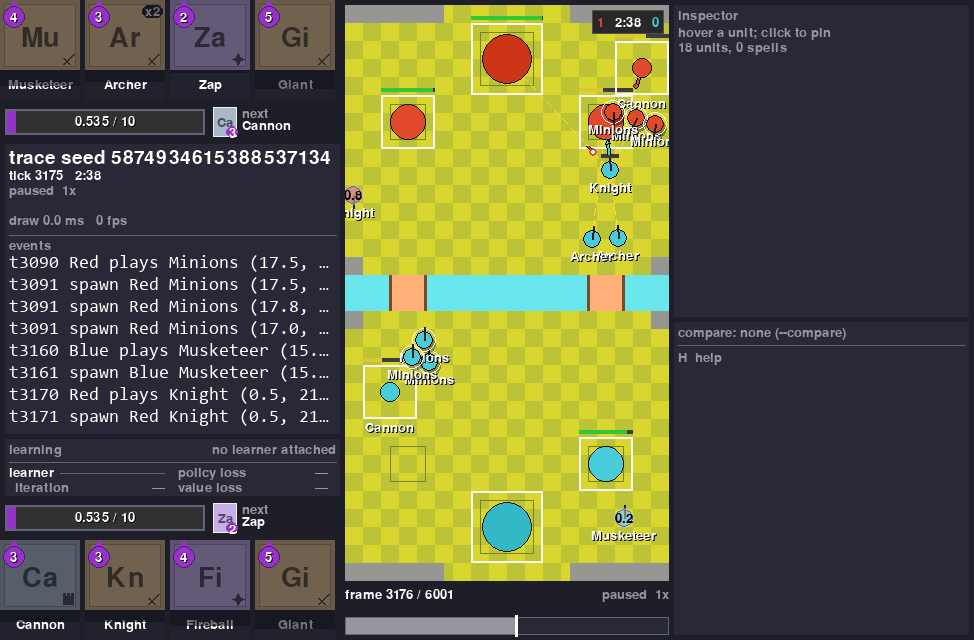

RoyaleViser	the viewer: recordings, engine traces and running environments, drawn in its own window	reads this package's recordings and its live UDP frames. The picture above is its window
RoyaleImitate	an optional add-on to RoyaleLearn: config sections that start a bot from saved weights and keep it near a reference policy while it learns	it imports this package's fair observation fields and action numbering, and plugs into RoyaleLearn
RoyaleLive	records real matches. It is private	nothing directly. Its recordings are what RoyaleSim is calibrated against, so the accuracy reaches your envs through the engine

Each layer only talks downward: RoyaleLearn to RoyaleGym to RoyaleSim. The engine knows nothing about rewards or observations. This repo knows nothing about PPO. That means you can change a reward without recompiling anything.

What comes in: the compiled engine module royalesim, and RoyaleSim's data files, which are its table of calibrated constants and the arena and card tables built from it. This package finds them at ../RoyaleSim/data, or wherever ROYALESIM_DATA_DIR points. The engine itself reads its card table from the checkout it was built in, as Install explains.

What goes out: recordings (.msgpack or .json) for the viewer, the replay page and regression tests; one UDP frame per env step for a viewer that is listening; and env objects for the learner.

Status¶

As of 2026-09-27. Two things about what your clone gives you, and the second is the one to read.

The install itself works from nothing. On 2026-09-27 the macOS and Linux form of the recipe, with a Python 3.12 venv, was run from fresh clones on a 4-CPU Linux machine. maturin develop --release took 163 seconds and about 1 GB of memory there. An earlier form of the recipe, from before the card-table copy line was added, was run verbatim in Windows PowerShell 5.1 on 2026-09-22, and its release build took 119 seconds.

The pytest suite passes on a clean runner: 1038 collected, 1028 passed, 9 skipped, 1 expected failure, nothing failing. This repo has one suite and it is pytest; there is no separate Rust suite here, and the engine's own tests live in RoyaleSim. Measured at commit ecbb80b on a clean runner rather than on the machine that wrote this: RoyaleGym suite run 36347317029 on GitHub's Linux runner, on engine build ec198b459cf311a4 built from RoyaleSim 1d661b0, against the 15.535.29 card table. It took 8 minutes 38 seconds there. A count belongs to the commit and the build it was taken at, so it names both.

Expect the same nine skips on your machine once the whole Install recipe is done. They are worth reading rather than ignoring:

Six comparisons between the compiled engine and MockEngine, the pure-Python stand-in. The stand-in reads the 2018 tables while the engine reads the current one, and running them across two vintages would measure the card data rather than the engines. Those six still run in RoyaleSim's cross-repo job, with both halves on one table.
One statement that the two engines model a building's footprint differently: a circle in MockEngine, a box of whole tiles in the Rust engine.
Two checks of a test count written in the docs: the badge above, and the one in docs/architecture.md. A count can only be checked at the commit it names, so anywhere else these skip and say so.

More tests skip if Node.js is not on your PATH, if RoyaleViser is not installed, if the other repos are not next to this one, or if something on your machine already holds port 9870.

A skip that names what it wanted is information. Earlier in this repo's life some of these FAILED instead, which is a different thing: a failure tells you your install is broken when it is not.

The pytest badge is from a clean runner, not the project's own machine, so it counts what a fresh clone runs, including the six comparisons that skip on this install.

Working:

The whole API on both engines. That is the Gymnasium, PettingZoo and self-play batched envs. The list of legal moves is worked out separately from the engine, and the tests check it against the engine's own ruling. They check every card the engine loads, including the Elixir Collector, which the deal keeps out of the opening hand. They check both seats and every move, on the whole-tile and the half-tile grid, on four boards: the opening, one with buildings down, one with a princess tower down, and one with both. Every card agrees on both card tables, and the tests allow no exception. Until 2026-09-27 one card did not: the list offered Heal on your own princess towers and on buildings, where the engine refused it.
One bot can play both seats. Everything it sees is drawn from the acting player's point of view, with its own king at the bottom, so a battle turned 180 degrees looks the same to the other seat. The mirror of that does drift apart: 80 of 144 multi-unit deploys diverged (docs/architecture.md).
Recording, verification, the replay page and the viewer stream. None of them are in the tick loop.
Six scripted opponents to train against, from one that never plays a card to one that saves elixir before committing. ladder() returns them. Their order is a measurement, and what it measures is smaller than it looks: over a round robin of 40 games a pairing, only two orderings hold, and the three middle rungs cannot be told apart. That is written down in royalegym/opponents.py rather than smoothed over, because a ladder in the wrong order tells you a bot improved when it only moved to an easier opponent.
An answer to "is this bot better than that one". evaluate plays the pair on both seats, half the games each way, and reports the win rate with a confidence interval, so a 55-45 result over 100 games reads as "too close to call" rather than as a win. It also counts a battle the step limit cut short as unfinished rather than drawn, and reports the two seats separately, because a gap between them means part of what you measured was the colour.

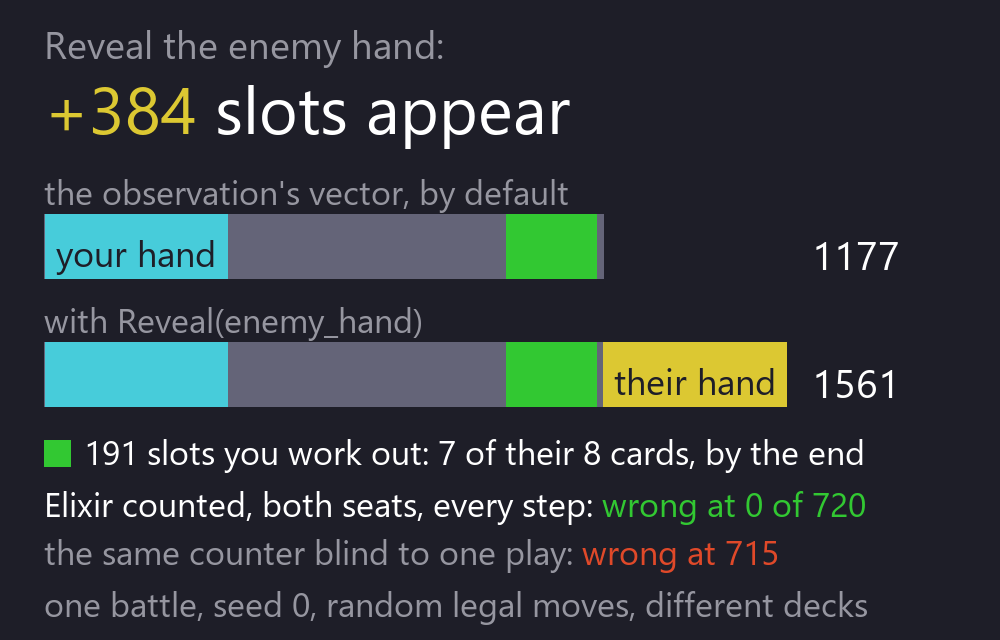

An observation that is fair by default. What your bot sees is what a person watching the match could write down, including a COUNT of the opponent's elixir that is exact against the engine's own bar. Anything hidden is opened one field at a time with a Reveal. Turning one on changes the observation's WIDTH instead of filling in zeroed slots, and ClashParallelEnv.config() records it, so a checkpoint says which Reveal fields were on (docs/observation-spec.md). One known gap: a unit invisible to its enemy, such as a Royal Ghost, is still shown to the enemy seat where it stands, which a player cannot see. This is not fixed yet, and config() cannot record it, because it is not a Reveal.
StateMutator, and TerminationCondition / TruncationCondition so that a settled result and a time-out are different things. The earlier names still import as aliases.

Speed: the Rust engine runs 1.16 to 1.38 times the pure-Python stand-in, measured by alternating the two inside one process. That ratio is the durable number here, because whatever the machine is doing it does to both arms. An env step is one decision for each player, covering half a second of game time.

The absolute rate is not durable and you should not plan against it. By 2026-09-22 the same report on one laptop with 8 GB of memory had printed 953, 957, 859 and 1812 env steps per second, depending on the hour and what else was running.

How that was measured, and the rest of the numbers:

On 2026-09-21 the test suite's throughput report printed 826 env steps per second on the Rust engine at 10 ticks per step. The same report printed about 32 000 engine ticks per second when the engine is stepped 20 ticks at a time.
The gap between those two figures is Python. Python builds both players' observations and their legal-move lists on every step. Closing that gap is the first open item below.
Later the same day we dropped the placement-zone channels from the observation. The legal-move list already states that exactly, so the channels were saying it twice. The same report went from 766 to 953 env steps per second on the Rust engine, and from 475 to 580 on MockEngine.
That was measured by alternating the two trees three times in one session. The absolute numbers move by a third depending on what else the machine is doing. The comparison between them does not.
The same report on 2026-09-22, with five other jobs running on the machine, printed 957 env steps per second on the Rust engine.

Open, as of 2026-09-27:

A unit invisible to its enemy, such as a Royal Ghost, is still shown to the enemy seat where it stands. A player cannot see it. This is not fixed yet.
Leave the deck out and each side draws from every card the engine loads. That includes WarmSpell, an event card.
Default observations and rewards should be computed inside the engine, with the Python versions kept as the override for experiments. Until that is done, training time goes to building observations rather than to the battle.
RoyaleLearn runs on these envs, and no bot has come out of it yet. On 2026-09-22 its authors found that a reward reached the learner one step after the move that earned it, so every training number the project had produced described a different objective than the one intended. A fix landed the same day, and nothing has been published from a run on it. That is their side of the seam, not these envs, but it is the honest state of the only trainer that uses them. The envs also expose action_masks() in the form sb3-contrib's MaskablePPO expects, if you would rather bring your own trainer.
MockEngine is a stand-in, not a second simulator. Spells resolve instantly, there are no stuns or knockbacks, and cards run at their base level. Anything about how faithful the game itself is belongs to RoyaleSim's status, not this repo's.

Tests:

cd RoyaleGym
..\.venv\Scripts\python -m pytest -q
..\.venv\Scripts\python -m ruff check royalegym tests examples

Without the engine built, the Rust-backed tests skip. An engine built from a different calibration or arena file than the one on disk fails them instead of skipping.

The suite takes several minutes. On one desktop it takes about 10 to 12 minutes with nothing else running, and 20 minutes or more beside other jobs.

With the whole Install recipe done, expect nine skips; the Status section above names them. A few more skip if Node.js is not on your PATH or RoyaleViser is not installed. The summary at the end of the run gives the reason for each skip. A skip is not a pass. Troubleshooting says which skips are expected and why.

Community¶

The project's Discord is the front door for the whole family: bot creators, engine work and training runs.

Issues and pull requests on this repo are welcome too.
